ECO series

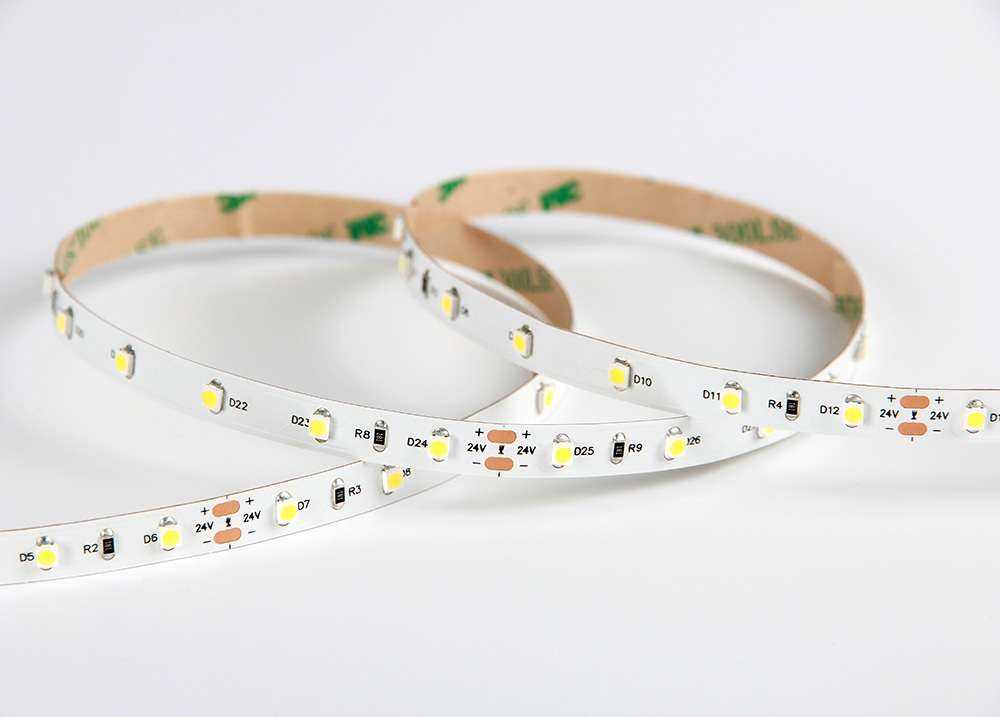

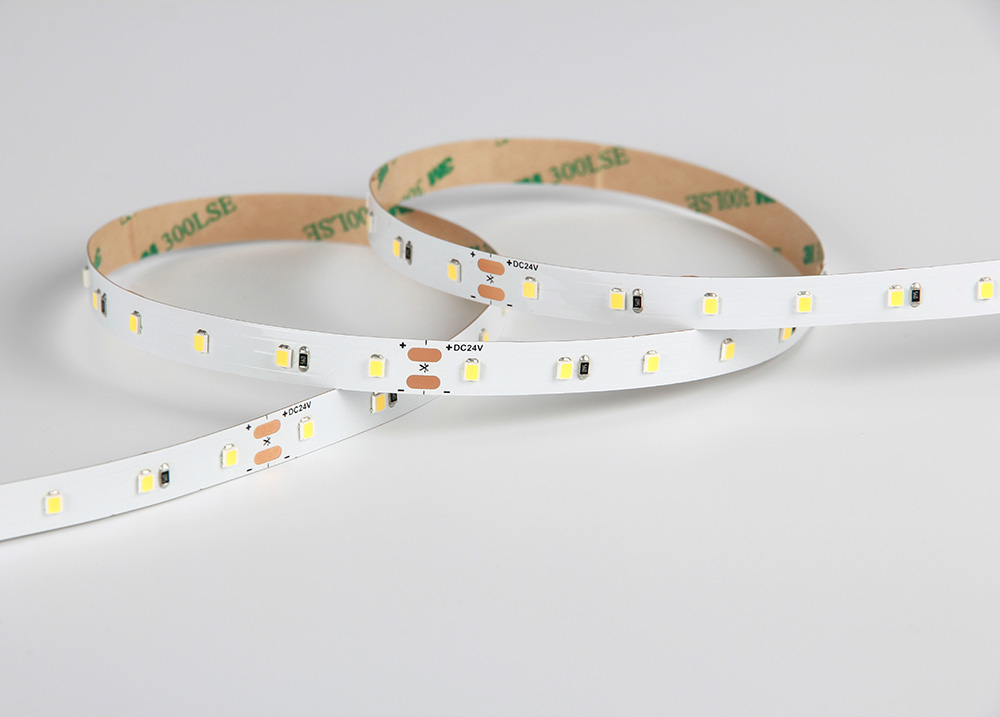

3528 single row 60 leds-FBW003A2
LED type: SMD3528 LEDs/m: 60LEDs FPCB thickness: 2oz FPCB width: 8mm CRI: 80+ Input voltage: 12V/24VDC Power: 4.8W/m Min. cut: 50mm@12V 100mm@24V Luminous flux: 432LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
3528 single row 60 leds-FBW003A2

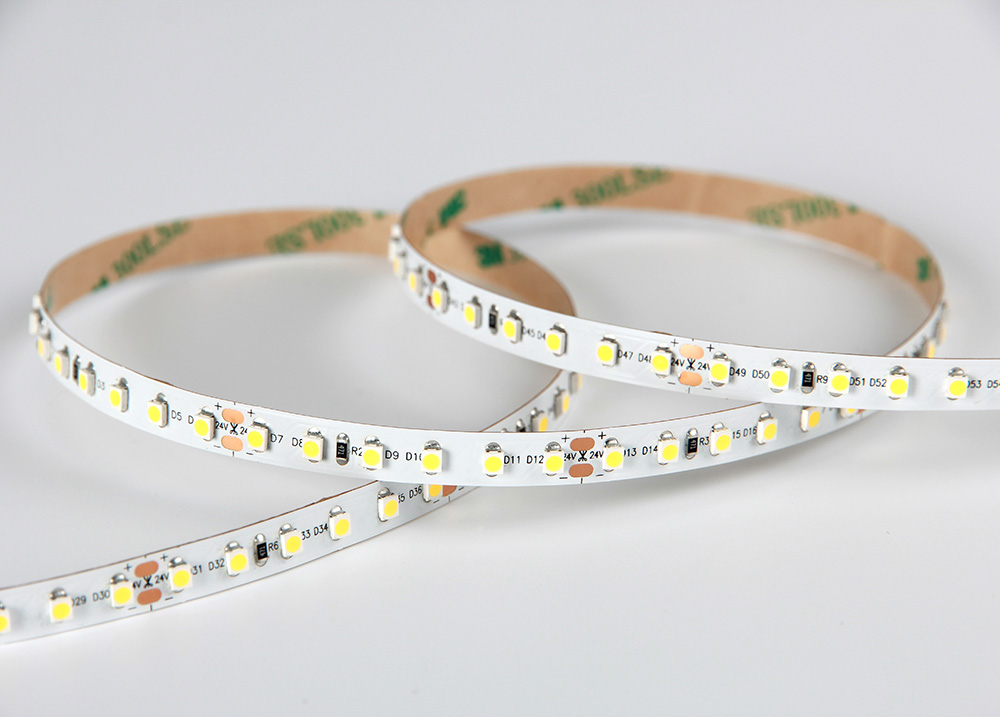

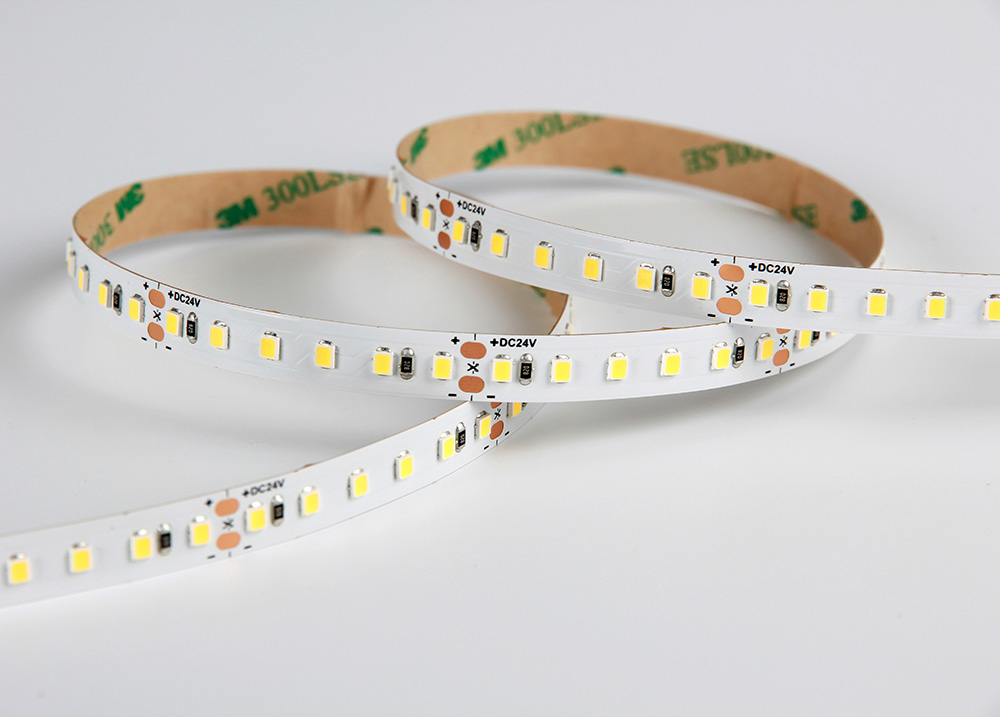

3528 single row 120 leds-FBW007A2
LED type: SMD3528 LEDs/m: 120LEDs FPCB thickness: 2oz FPCB width: 8mm CRI: 80+ Input voltage: 24VDC Power: 9.6W/m Min. cut: 25mm@12V 50mm@24V Luminous flux: 845LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
3528 single row 120 leds-FBW007A2

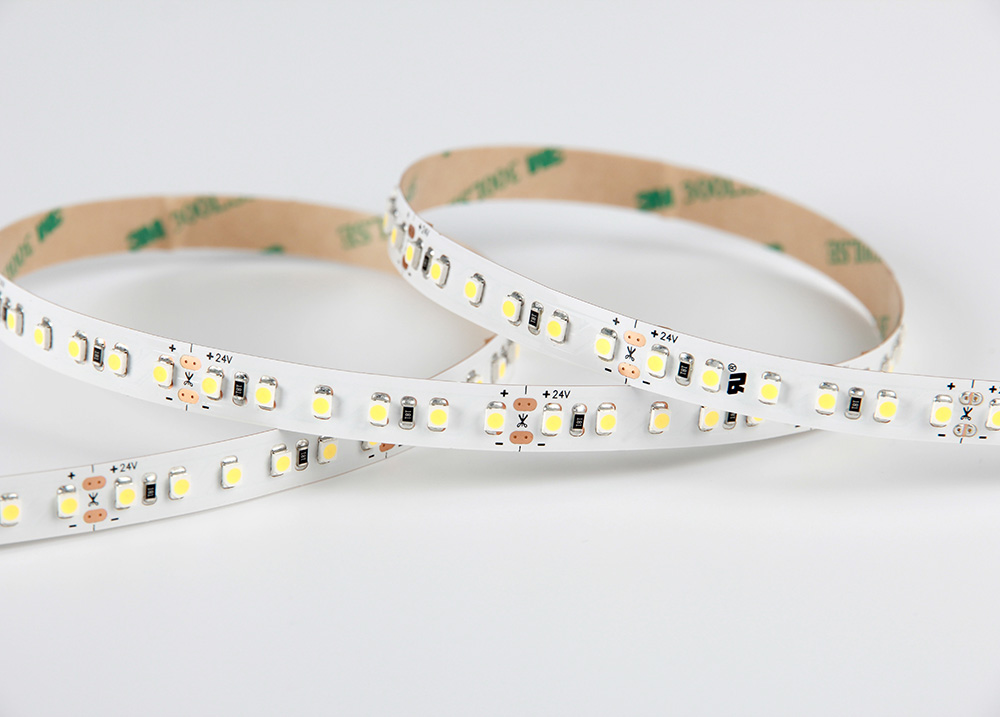

3528 single row 120 leds-FBW016A2
LED type: SMD3528 LEDs/m: 120LEDs FPCB thickness: 2oz FPCB width: 10mm CRI: 80+ Input voltage: 24VDC Power: 9.6W/m Min. cut: 50mm@24V Luminous flux: 864LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
3528 single row 120 leds-FBW016A2

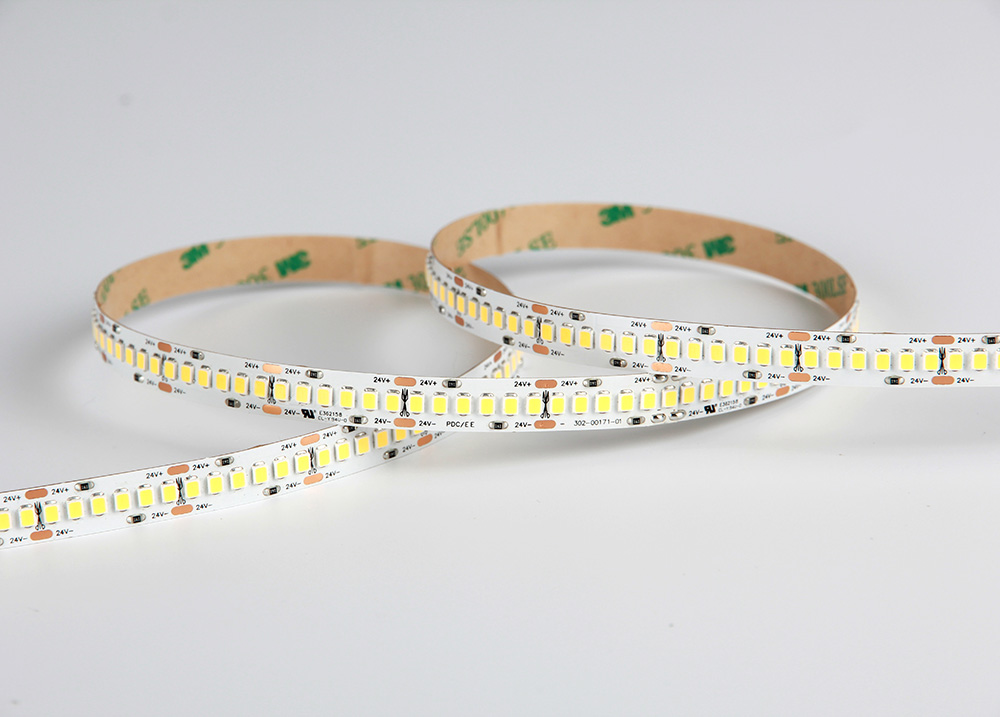

3528 single row 240 leds-FBW095A2
LED type: SMD3528 LEDs/m: 240LEDs FPCB thickness: 2oz FPCB width: 10mm CRI: 80+ Input voltage: 24VDC Power: 19.2W/m Min. cut: 25mm@24V Luminous flux: 1747LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
3528 single row 240 leds-FBW095A2
2835 single row 60 leds-FFW003A2
LED type: SMD2835 LEDs/m: 60LEDs FPCB thickness: 2oz FPCB width: 8mm CRI: 80+ Input voltage: 12VDC Power: 7.2W/m Min. cut: 50mm@12V Luminous flux: 1000LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
2835 single row 60 leds-FFW003A2
2835 single row 120 leds-FFW007A2
LED type: SMD2835 LEDs/m: 120LEDs FPCB thickness: 2oz FPCB width: 8mm CRI: 80+ Input voltage: 24VDC Power: 9.6W/m Min. cut: 25mm@24V Luminous flux: 1000LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
2835 single row 120 leds-FFW007A2

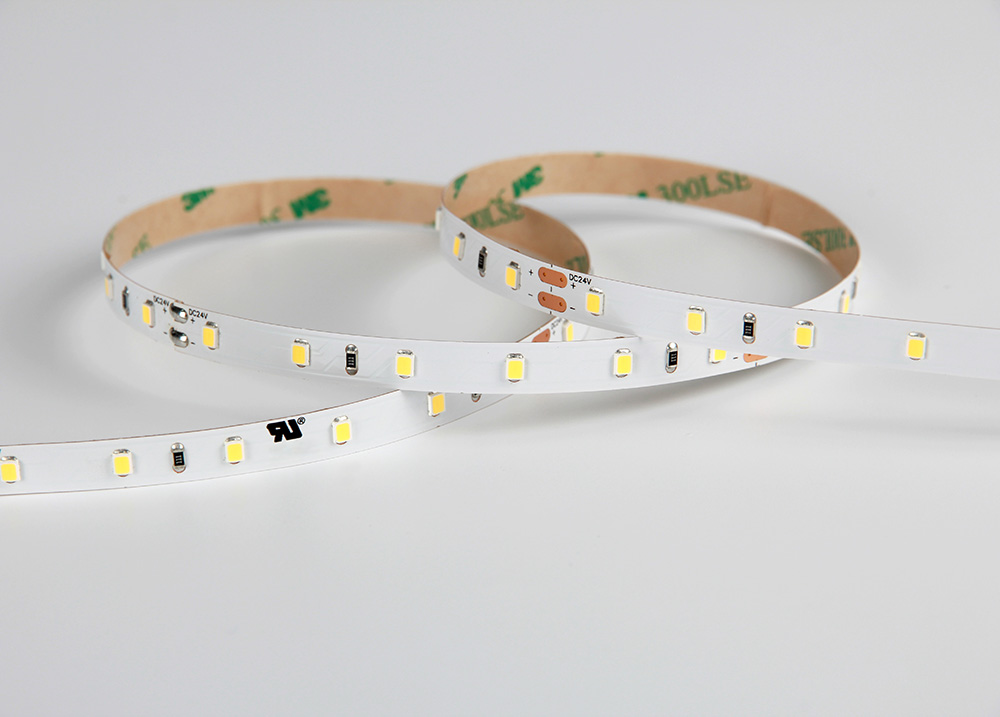

2835 single row 60 leds-FFW012A2
LED type: SMD2835 LEDs/m: 60LEDs FPCB thickness: 2oz FPCB width: 10mm CRI: 80+ Input voltage: 24VDC Power: 12W/m Min. cut: 100mm@24V Luminous flux: 1250LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
2835 single row 60 leds-FFW012A2

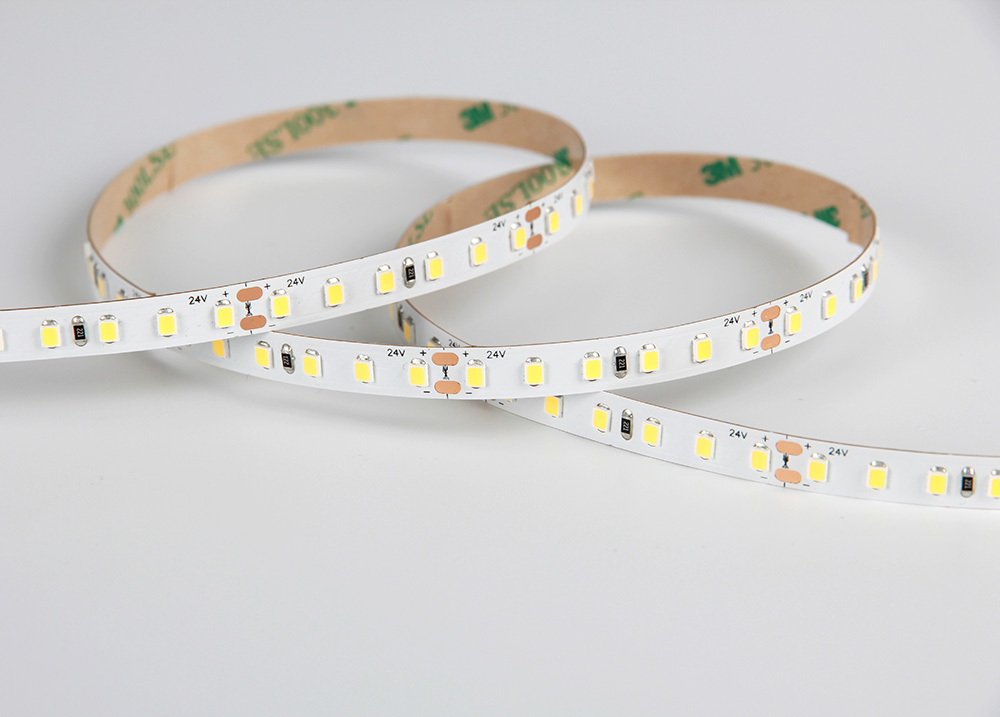

2835 single row 120 leds-FFW016A2
LED type: SMD2835 LEDs/m: 120LEDs FPCB thickness: 2oz FPCB width: 10mm CRI: 80+ Input voltage: 24VDC Power: 17W/m Min. cut: 50mm@24V Luminous flux: 1836LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
2835 single row 120 leds-FFW016A2

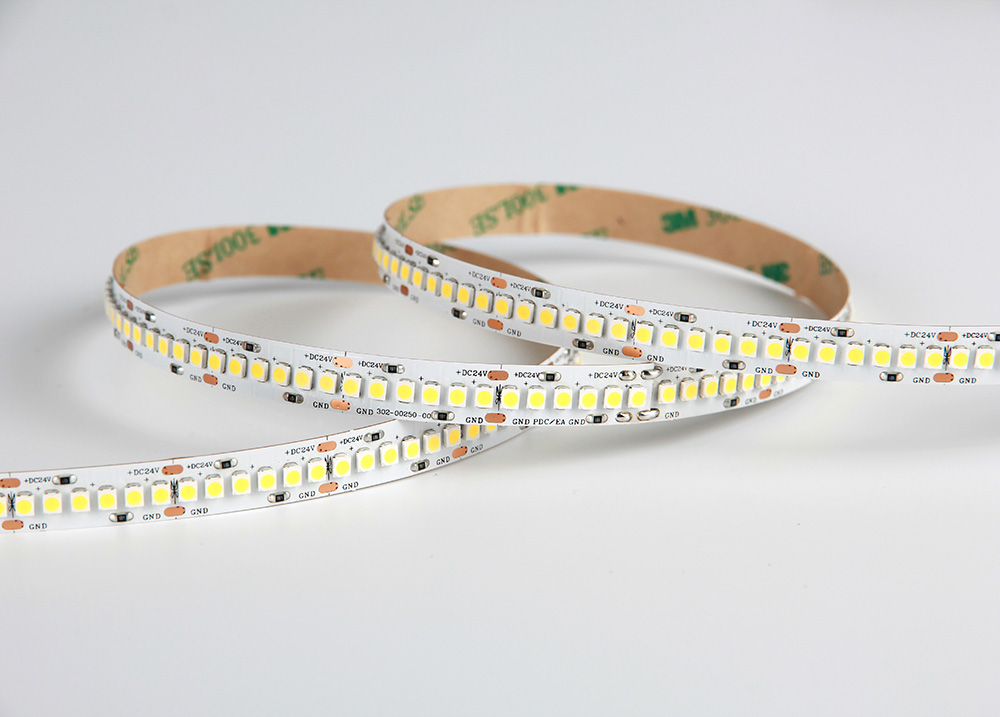

2835 single row 240 leds-FFW095A2
LED type: SMD2835 LEDs/m: 240LEDs FPCB thickness: 2oz FPCB width: 10mm CRI: 80+ Input voltage: 24VDC Power: 20W/m Min. cut: 25mm@24V Luminous flux: 2000LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
2835 single row 240 leds-FFW095A2

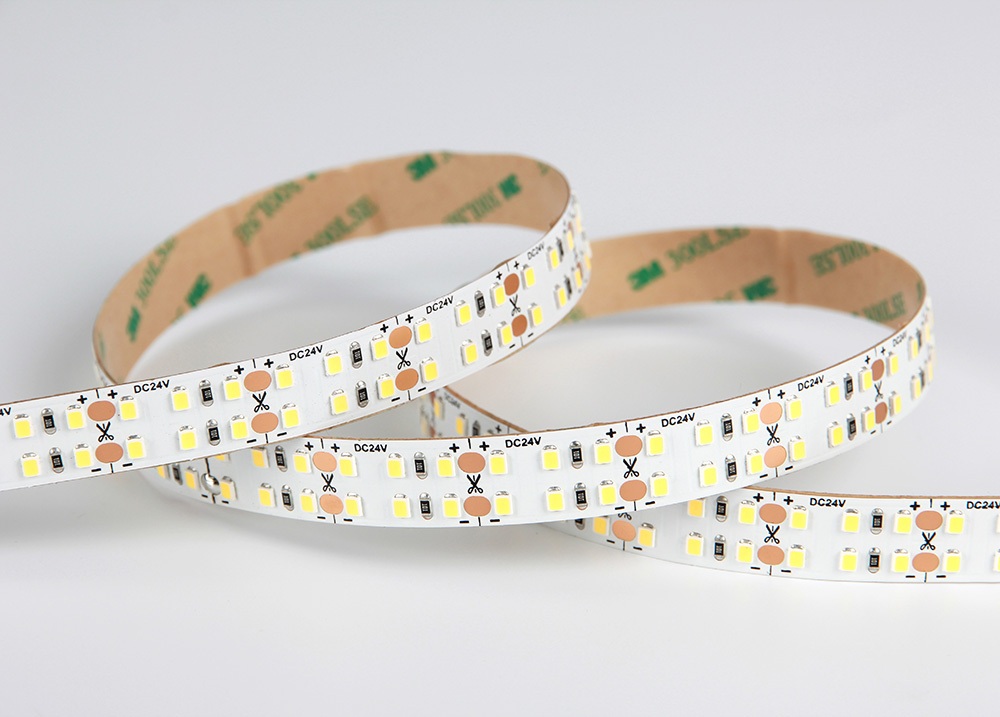

2835 double row 240 leds-FFW091A2
LED type: SMD2835 LEDs/m: 240LEDs FPCB thickness: 2oz FPCB width: 15mm CRI: 80+ Input voltage: 24VDC Power: 25W/m Min. cut: 25mm@24V Luminous flux: 2275LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
2835 double row 240 leds-FFW091A2

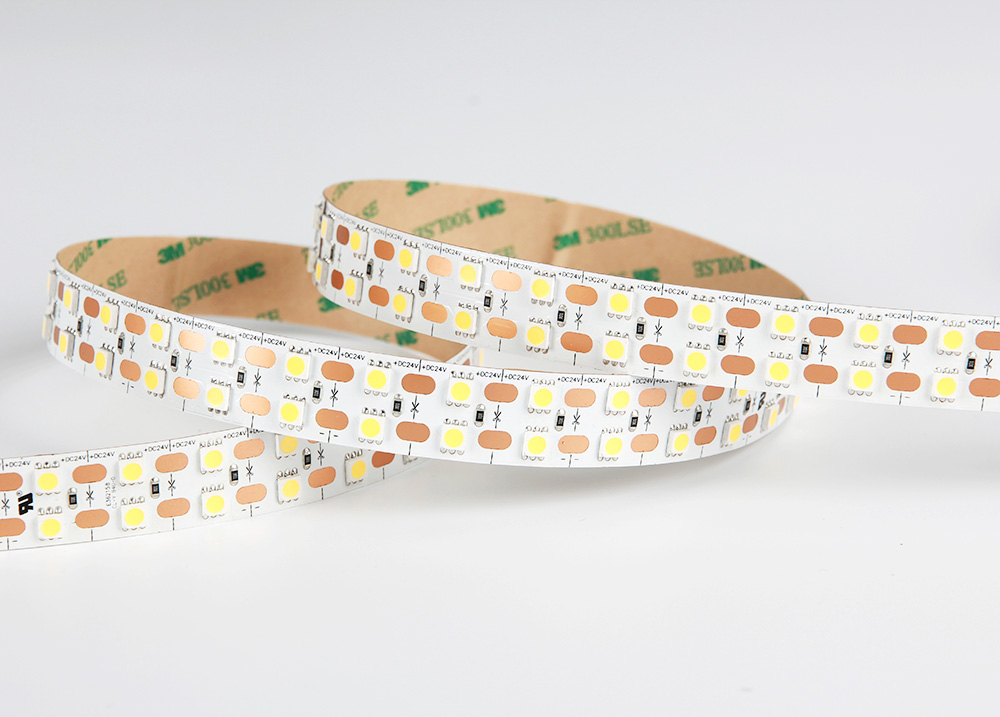

5050 double row 120 leds-FPW038A1
LED type: SMD5050 LEDs/m: 120LEDs FPCB thickness: 2oz FPCB width: 20mm CRI: 80+ Input voltage: 12V/24VDC Power: 28.8W/m Min. cut: 16.67mm@12V/24V Luminous flux: 2304LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
5050 double row 120 leds-FPW038A1

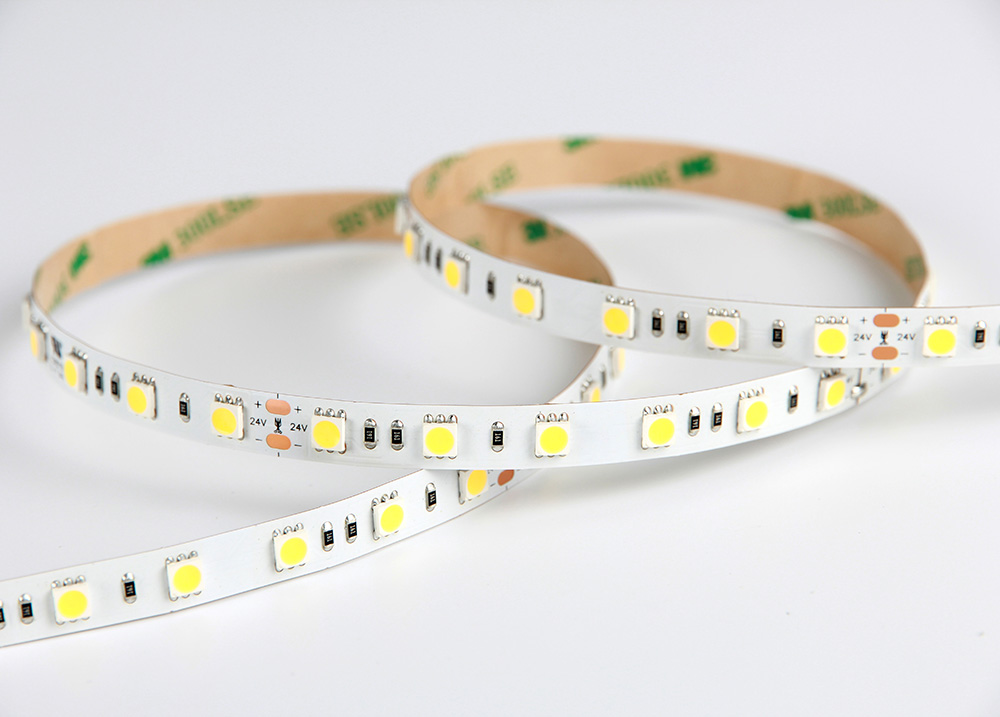

5050 single row 60 leds-FPW012A2
LED type: SMD5050 LEDs/m: 60LEDs FPCB thickness: 2oz FPCB width: 10mm CRI: 80+ Input voltage: 12V/24VDC Power: 14.4W/m Min. cut: 50mm@12V 100mm@24V Luminous flux: 1152LM/m@4000K Warranty: 3 years Operating temperature:-25~40°C
5050 single row 60 leds-FPW012A2
2835-120-24V
◆ Certified by UL, CE, RoHS. ◆ Safety voltage DC24V and DC12V. ◆ CRI 80+, 90+, 95+, sunlike for options. ◆ Easy installing for many ways(3M tape or Aluminum Profile). ◆ Can be cutting into small units (with a “scissors” sign on the LED strip) or connecting at your will.
2835-120-24V
